Introducing HYLINE HY40
38mm double glazing, 18mm frame, 6m tall, max area 18m² per panel.
With 38mm double glazing up to 6m tall (max individual panel 18m²), the HYLINE 40 is perfectly suited when larger glass panels are required and increased thermal, acoustic and water performance is a priority.
HYLINE 40.
SLIM FRAMED SLIDING DOOR SYSTEM
The HY40 is a truly versatile, luxury glazing solution... A beautifully thin 18mm frame, huge glass surfaces and options to include multiple tracks/rails, corners, pocket doors, motorised open/close, smart tech, internal shutters and fly screens - all available in a choice of coloured finishes and textures.
- The slimmest sightlines on the market - only 18mm
- Variety of colours and finishes available
- Multiple rails, corners, pocket doors, shutters, motorised open/close
- Integrated floor threshold system
- Multi-point locking system
- Excellent acoustic, thermal and water tightness performance
HYLINE 40 Sliding Door Specification
Our Product Code
MFP18-HY40
Configuration Options
Mono / Bi / Tri / Quad. + Rails
Pillarless corner module
Pocket door module
Unlimited rails
Motorised opening/closing
Usage
Suitable for exterior use where increased thermal, acoustic and water tightness performance is required.
Frame width
18mm - The slimmest sliding door frame on the market!
Maximum Height
6m
Maximum Width
No limit.
Maximum Area
18m² per individual glass panel.
Maximum Weight
1000kg/ML
Glazing
Up to 38mm double glazing.
Thermal Transmittance
UW = 1,3 (W/m²K)
Ug = 0,7 (W/m²K)
Acoustic Performance
Rw = 36 dB
Air Permeability
(EN 12207 : 2000) : Class 3
Water Tightness
(EN 12208 : 2000) : Class 8A
Wind resistance
(EN 12210 : 2000) : Class C2
Integrated Gutter
HYLINE sliding doors incorporate a stainless steel gutter/drainage system that improves water drainage and increases oxidation.
Smart Controls
Optionally, most sliding doors in the HYLINE range can include the HYMOTOR motors system and smart controls, allowing you to operate the opening/closing of your doors via physical buttons and/or the HYLINE app on your smartphone or tablet.
Locking and Security System
HYLINE locking systems have RC2 classification.
Integrated cylinder lock can be hidden on the wall to create an invisible frame effect whilst still providing maximum control.
For added security, an electromagnetic lock, Digicode or finger scanner can be integrated in the wall or the frame on select ranges.
Multi-point Lock
HYLINE 30 features a multipoint locking system. The mechanism is completely hidden in the frame and each locking point is adjustable.
Finishing Options
HYLINE Colour Essentials (Ral Coloures STD).
HYLINE Natural Metals (Qualanod EURAS Class 2 STD).
HYLINE Advanced Coating (Hiper Durable Finishings).
HYLINE Luxury Collection under Qualicoat Seaside Standards.
Invisible Frame
Tiny 18mm signtlines - The slimmest on the market! In addition, the surround aluminium framing is further reduced to ultra slim 8mm once embedded in the wall.
Integrated Floor
The HYLINE 30 door system allows different types of finishing for the rims of pavement, ensuring visual continuity and material between the inside and outside.

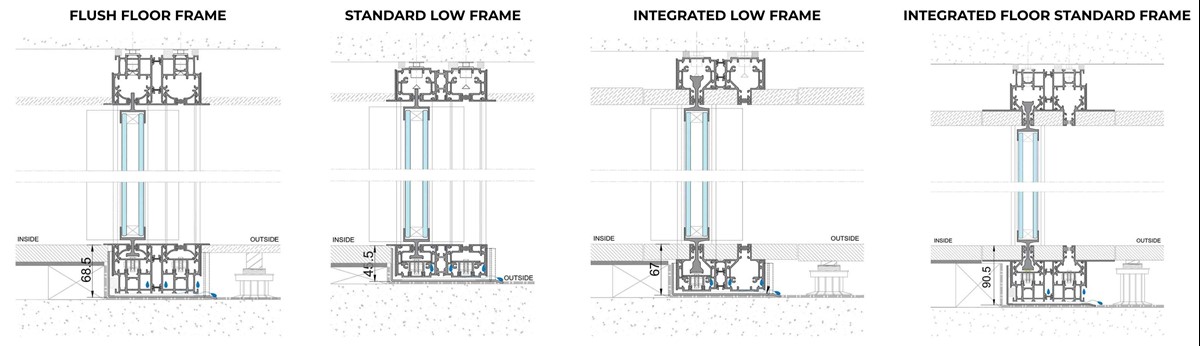

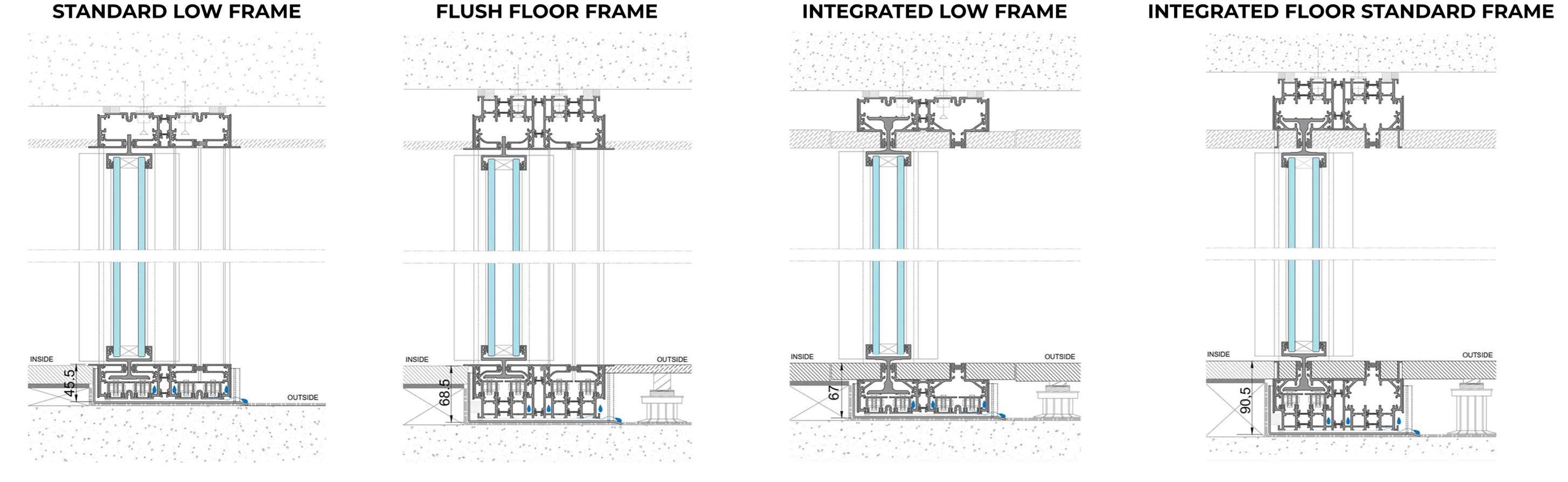

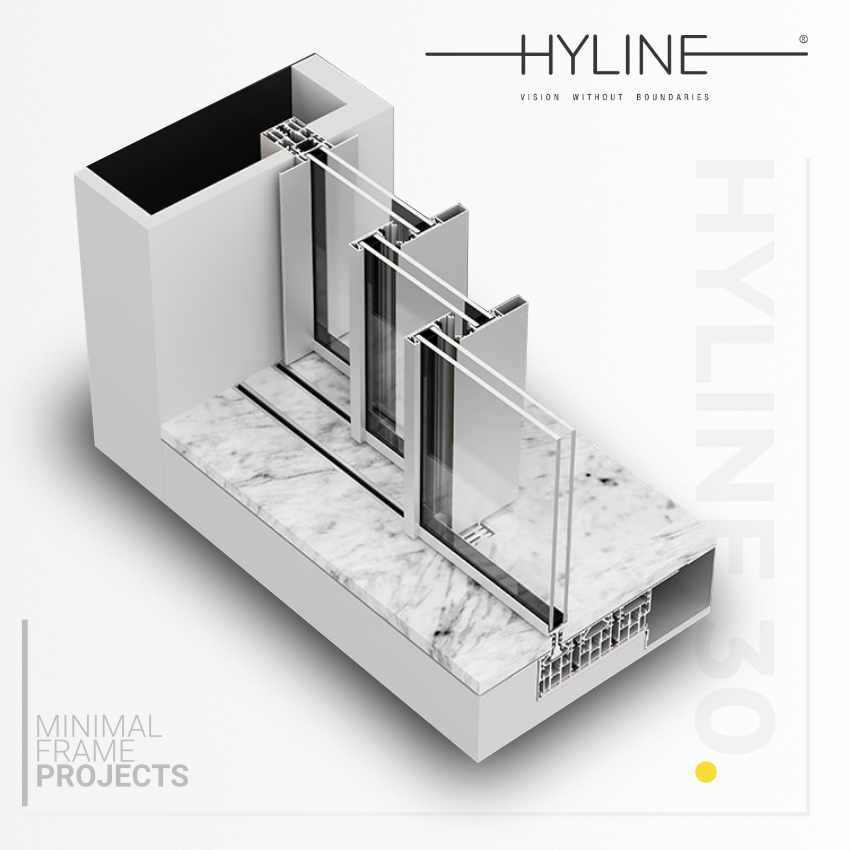

HYLINE 40 Cross-section Diagrams
Typical HYLINE Sliding Door Layout Configurations
HYLINE Lacquer Finishes
In addition to safeguarding aluminium from natural corrosion, lacquering provides an array of colours and finishes to add that finishing touch to your HYLINE window and door system.
As no two projects are the same, at Minimal Frame Projects we offer a range of colours and textures and finishes to personalise your HYLINE glazing. Popular finishes include textured RAL lacquers, mattes and a very special HYLINE textured lacquer.
Matte Finishes
Textured Finishes
Noir Finishes
HYLINE Anodization
Anodization is an electrolytic process that generates an oxide layer of aluminium alloy. HYLINE windows and doors typically are available in a choice of two sub-treatments:
- Polishing - Resulting from mechanical treatment
- Satin finish - Resulting from chemical treatment
This process not only preserves the natural colour and beauty of aluminium, but also offers a spectrum of colours through electrolytic colouring.
Electrolytic Anodization is available on all HYLINE windows and doors at Minimal Frame Projects in a choice of champagne, bronze or black.
Adonized Finishes
Documents, Fact Sheets & Brochures

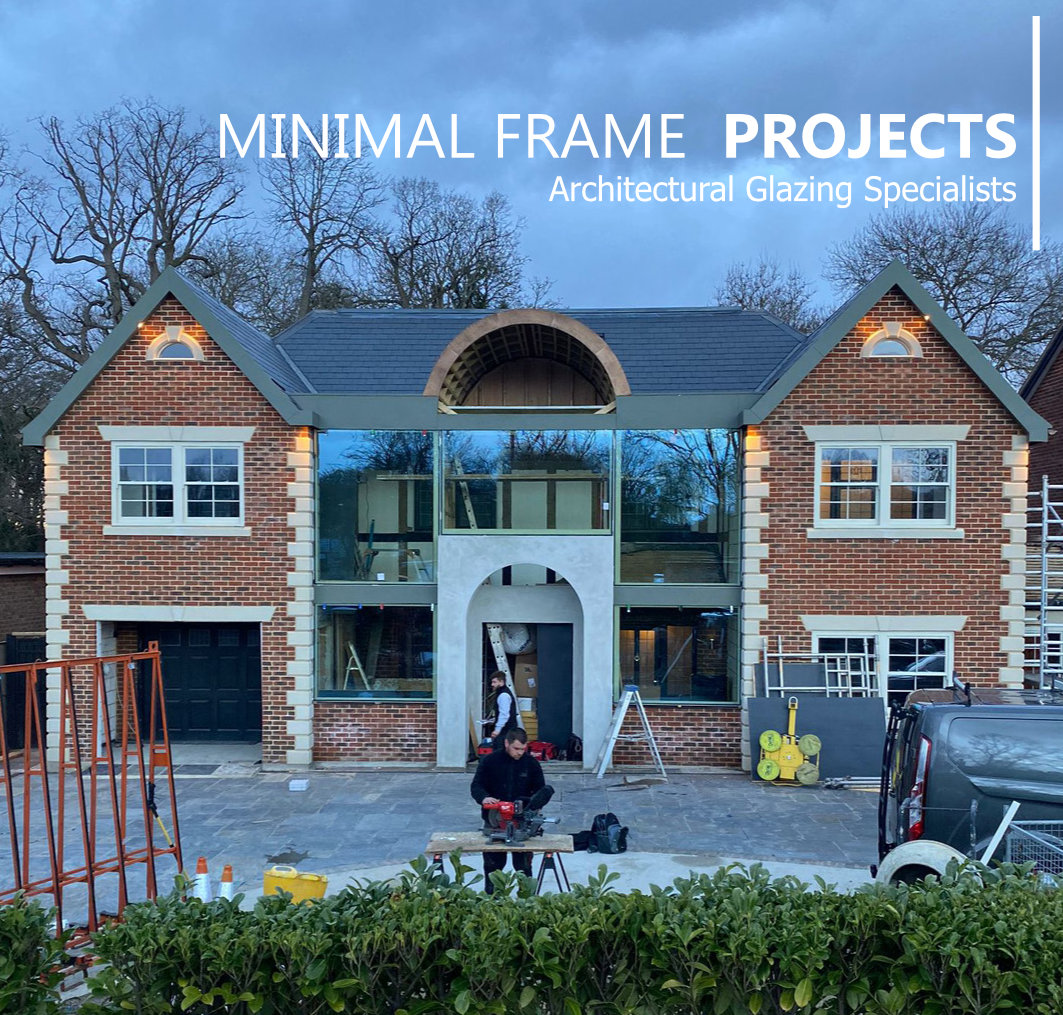

Official HYLINE UK Supply and Installation by Minimal Frame Projects
